Engine4-stroke, 1-cylinder, SOHCDisplacement271ccBore x Stroke72.7 x 65.2mmCompression Ratio11.0:1Maximum Torque15.9 lb-ft @ 6,500 rpmFuel SystemKeihin CVK32 carburetorIgnitionDC-CDITransmissionAutomatic CVT with centrifugal clutch (H,L,N,R)Final Drive2WD, Shaft
Front Suspension / Wheel TravelIndependent double wishbone/5.2 inRear Suspension / Wheel TravelSwingarm/5.6 inFront TireAT 22 x 7-10 Maxxis® tubelessRear TireAT 22 x 10-10 Maxxis® tubelessFront BrakesDual 148mm discsRear BrakesSingle 148mm discGround Clearance6.1 inStarting SystemElectricFuel Capacity3.2 galElectronic Power Steering (EPS)NoTurning Radius9.2 ftTowing Capacity500 lbTotal Rack Capacity110 lbRack Capacity, Front/Rear44/66 lbLighting(2) 35W headlights, 5W taillight and 21W stoplight

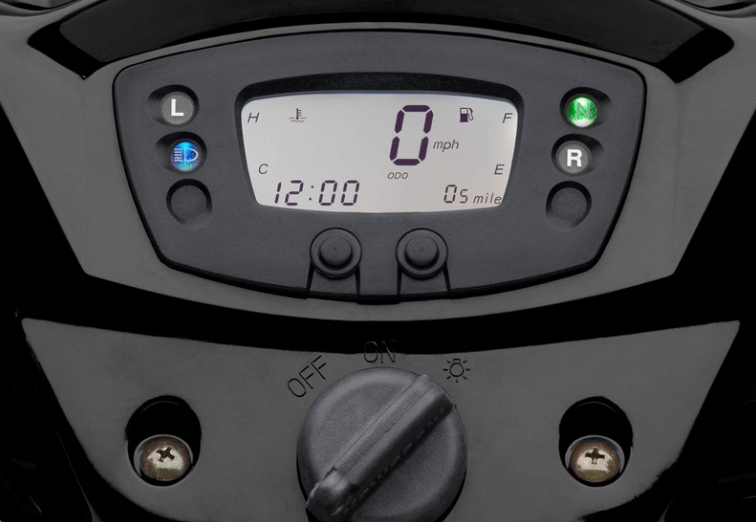

Frame TypeDouble cradle, steelTrack Front/Rear33.5/32.7 inOverall Length75.4 inOverall Width42.5 inOverall Height46.1 inSeat Height33.3 inCurb Weight535.8 lb*Wheelbase45.9 inInstrumentsSpeedometer, odometer, clock, fuel gauge and coolant temp lightColor ChoicesFirecracker Red, Grayish BlueWarranty12 Month Limited WarrantyKawasaki Protection Plus™ (optional)12, 24, 36, or 48 months
