Front Suspension / Wheel Travel
Double wishbone/11.0 in
Rear Suspension / Wheel Travel
Double wishbone/10.1 in
Front Tires
26 x 9.00-12, radial
Rear Tires
26 x 11.00-12, radial
Park Brake Type
Independent, Mechanical Disc
Steering
Electric Power Steering (EPS), Tilt steering
Front Brakes
Dual Disc, 2 piston caliper
Rear Brakes
Dual Disc, 1 piston caliper
Ground Clearance
12.6 in (max), 11.6 in (std)
Fuel Capacity
7.9 gal
Turning Radius
16.0 ft
Cargo Bed Dimensions (LxWxH)
42.7 x 53.7 x 11.0 in (3-person) / 22.0 x 53.7 x 11.0 in (6-person)
Cargo Bed Capacity
999 lb (3-person) / 350 lb (6-person) / 348 lb CA Model
Payload Capacity
1,616.3 lb / 1,263.5 lb CA Model
Seating Capacity
3-person (1 row), 6 person (2 row)
Towing Capacity
2,000 lb
Lighting
(2) Halogen headlights. (2) LED headlightsEngine
4-stroke, 2-cylinder, DOHC, liquid-cooled, gas
Displacement
999cc
Bore x Stroke
92.0 x 75.1mm
Compression Ratio
10.1:1
Maximum Torque
61.5 lb-ft
Fuel System
DFI® with 38mm throttle body
Transmission
Continuously Variable Transmission (CVT) with (L,H,N,R)
Final Drive
Selectable 2WD/4WD, shaft Dual mode rear differential with differential lock
Engine Braking
Yes
Alternator Output (max)
90 amp
Front Suspension / Wheel Travel
Double wishbone/11.0 in
Rear Suspension / Wheel Travel
Double wishbone/10.1 in
Front Tires
26 x 9.00-12, radial
Rear Tires
26 x 11.00-12, radial
Park Brake Type
Independent, Mechanical Disc
Steering
Electric Power Steering (EPS), Tilt steering
Front Brakes
Dual Disc, 2 piston caliper
Rear Brakes
Dual Disc, 1 piston caliper
Ground Clearance
12.6 in (max), 11.6 in (std)
Fuel Capacity
7.9 gal
Turning Radius
16.0 ft
Cargo Bed Dimensions (LxWxH)
42.7 x 53.7 x 11.0 in (3-person) / 22.0 x 53.7 x 11.0 in (6-person)
Cargo Bed Capacity
999 lb (3-person) / 350 lb (6-person) / 348 lb CA Model
Payload Capacity
1,616.3 lb / 1,263.5 lb CA Model
Seating Capacity
3-person (1 row), 6 person (2 row)
Towing Capacity
2,000 lb
Lighting
(2) Halogen headlights. (2) LED headlights
Overall Length
135.8 in
Overall Width
64.0 in
Overall Height
80.9 in
Curb Weight
1,913.9 lb* / 1,916.1 lb* CA Model
Wheelbase
92.3 in
Instruments
Multi-function display includes digital speedometer, fuel gauge, odometer, hour meter, clock, dual trip meters, 2WD/4WD indicator, water temperature warning indicator, oil pressure warning indicator, fuel injection warning indicator, CVT and EPS warning indicators, neutral, reverse and parking indicators, seatbelt reminder lamps
Wheel Type
Alloy
Additional Features
Roof, Additional Front Cup Holders

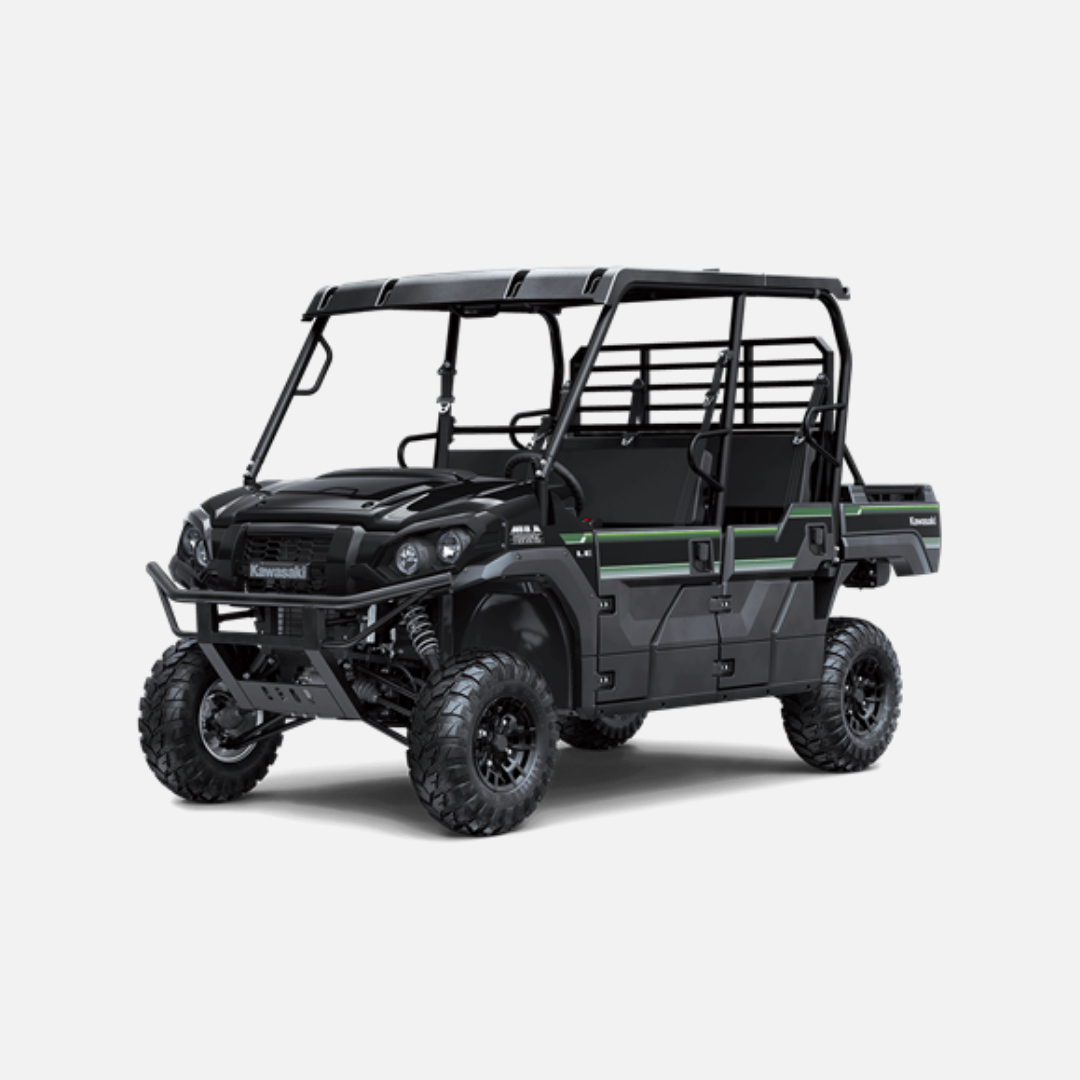

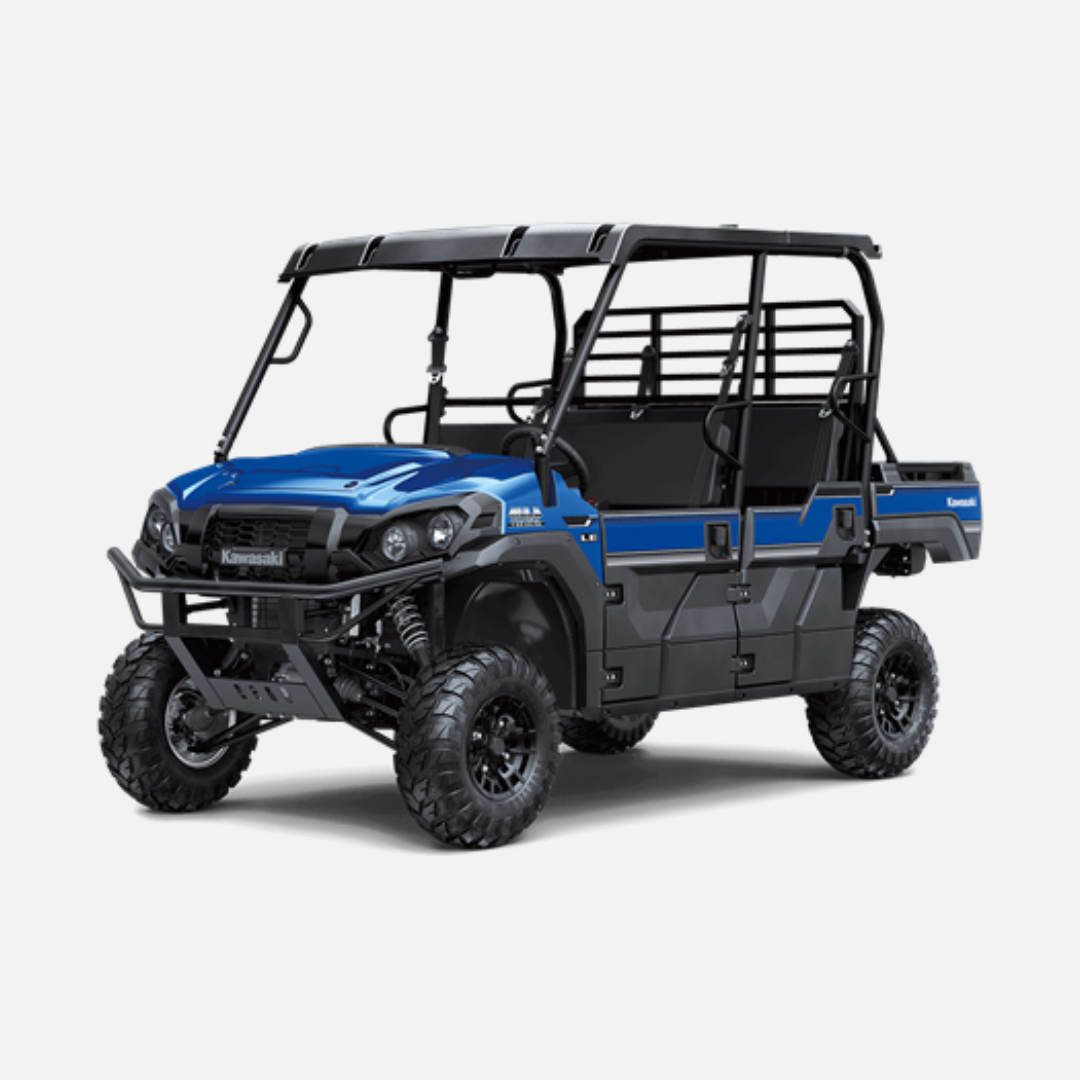

Color Choices
Metallic Onyx Black, Metallic Sierra Blue
Warranty
Kawasaki STRONG 3-Year Limited Warranty
Kawasaki Protection Plus™ (optional)
12, 24, 36, or 48 months
